1. WEB911 is a revolutionary new automated sewing machine for saving labor cost and increasing productivity, in the production of webbing lifting slings. It can automatically finished all sewing tasks in one process, included (1) Assembly seams for joining layers of flat webbing together; (2) Reinforcement stitch (zig-zag pattern stitching ) for reinforced eyes (loops); (3) Straight stitches across the webbing.

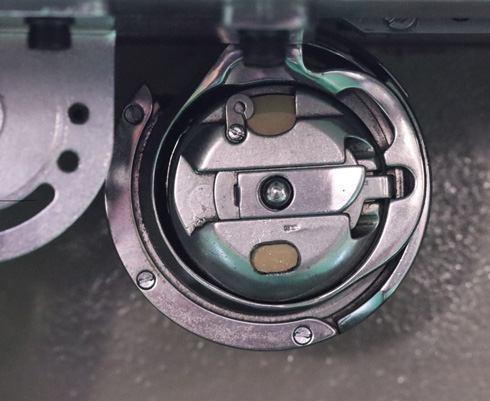

2. This textile slings sewing automation equipped with largest rotary hook in today market;

3. The 7 times larger bobbin capacity reduces the number of bobbin changes and offer high efficiency in sewing products using extra thick thread up to metric size 7* (=V415, T-400, 1300dx3);

4. The bobbin thread detector will automatically stop machine when bobbin thread runs out, as a result, sewing operators can concentrate on their work without worrying about the bobbin thread, increasing the productivity, and it is possible to run 2 or 3 machines with only one person, great for saving labor cost;

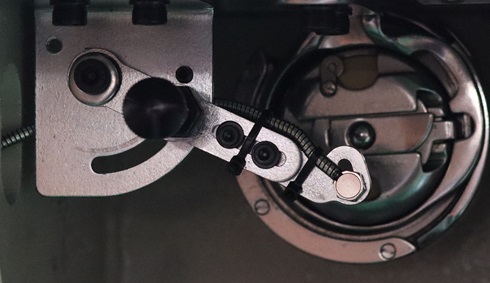

5. The thread trimmer offers outstanding reliability and durability. The ideal application for the device is the sewing of height safety harness and cargo lashing belts with thick synthetic threads;

6. The needle cooler blows air to the needle, thereby preventing thread breakage caused by hot needle;

7. This fully automatic lifting sling sewing machine is adjustable for stitching any width of webbing from 100mm to 300mm;

8. Additionally, we have 20 years of experience providing turn-key programmable sewing machine systems to a global market. Vast experience in serving customers from the productions of cargo lashing straps, safety harnesses and lifting slings. HighTex has machines for various applications, which through the vast experience of the HighTex Technical Service can be incorporated into production lines of multiple textile slings industries, in order to reduce the labor required for sewing processes.

(1) Assembly seams for joining layers of flat webbing together;

(2) Reinforcement stitch (zig-zag pattern stitching ) for reinforced eyes (loops);

(3) Straight stitches across the webbing.

Max. Speed:1200 RPM

Hook Type:7 times larger rotary hook

Max. Sewing Width:300mm

Max. sewing length:Infinite length

Needle System:794 needle, #200-#280

Max. Thread size:#7 (= V415, T-400, 1300dx3)

Max. sewing thickness:14mm thick cargo webbing and 12mm high density harness webbing

Stitch Length:0.1~12.7mm

Control system:Closed-Loop Control

Presser Foot Lift:20mm

NeedleBar Stroke:70mm

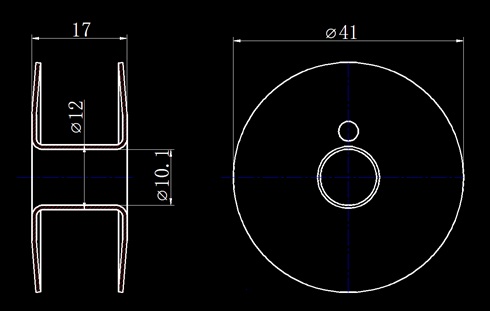

Bobbin size:Dia. 41mm, Height 17mm

Needle cooler:Cold air

Air pressure:0.6 MPa

Power:200-240 Volt 1 or 3 Phase

Thread trimmer system:Horizontal engagement with fixed knife and movable knife

Feeding System:Intermittent

Packing size:1x1450x1230x1400mm,2x1450x500x1250mm, 790KGS

H.S Code:8452219000
