1. This heavy duty programmable electronic pattern sewing machine equipped with largest rotary hook in today market;

2. The 6 times larger bobbin capacity reduces the number of bobbin changes and offer high efficiency in sewing products using extra thick thread up to metric size 7* (=V415, T-400, 1300dx3);

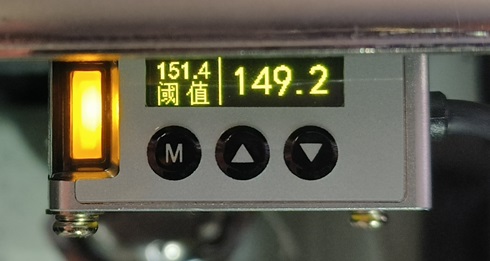

3. The bobbin thread detector will automatically stop machine when bobbin thread runs out, as a result, sewing operators can concentrate on their work without worrying about the bobbin thread, increasing the productivity, and it is possible to run 2 or 3 machines with only one person, great for saving labor cost;

4. The thread trimmer offers outstanding reliability and durability. The ideal application for the device is the sewing of height safety harness and cargo lashing belts with thick synthetic threads;

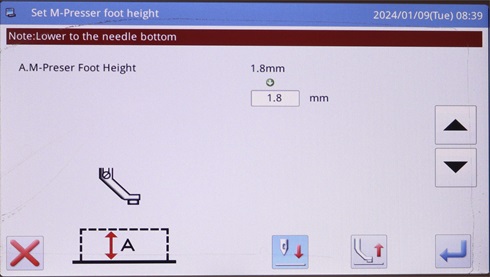

5. Presser foot control mechanism always provides uniform thread tightness (when thickness of material has been changed, the height of stepping presser foot is changed accordingly without tools required);

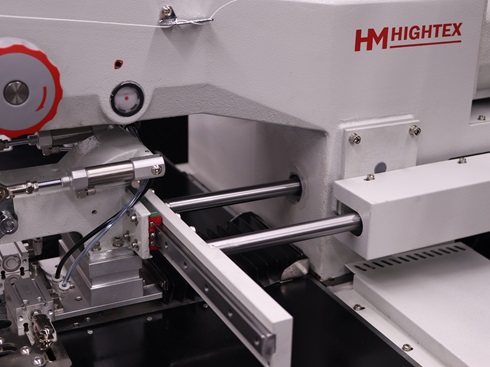

6. The high-rigid feeding system (double shafts) provides pinpoint accuracy and beautiful stitches;

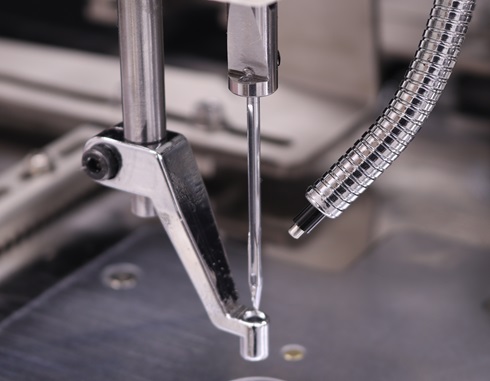

7. The needle cooler blows air to the needle, thereby preventing thread breakage caused by hot needle;

8. Additionally, we have 20 years of experience providing turn-key programmable sewing machine systems to a global market. Vast experience in serving customers from the productions of cargo lashing straps, safety harnesses and lifting slings. HighTex has machines for various applications, which through the vast experience of the HighTex Technical Service can be incorporated into production lines of multiple textile slings industries, in order to reduce the labor required for sewing processes.

Cargo webbing/tie-down webbing: heavy duty ratchet straps, lashing straps and tie down straps, load restraint equipment, cargo restraint ratchet strap; Safety harness webbing: safety harnesses, full body harness, fall protection harnesses, seat belts, screamers (shock absorbing sling), backpack straps, rescue belts, safety lanyard, slackline webbing; Webbing for lifting and hoisting (nylon or polyester): lifting slings, crane slings, rigging slings, tow strap, recovery strap; Military webbing: parachute harness, military straps, army vest, military equipment & tactical gear

Max. Speed: 1500 RPM

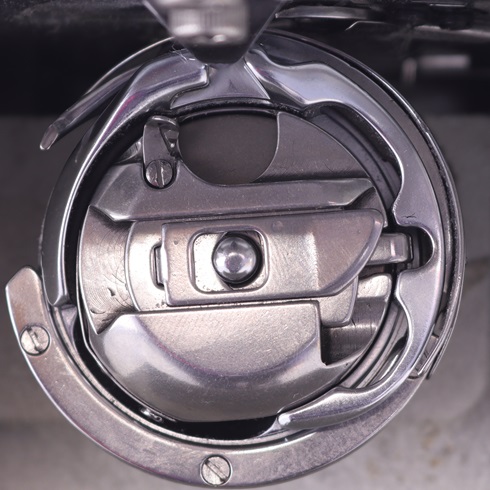

Hook Type: 6 times large rotary hook

Sewing Area: 300 x 175mm

Needle System: 794 needle, #160-#280

Max. Thread size: #7 (= V415, T-400, 1300dx3)

Max. sewing thickness:

14 mm thick cargo webbing and 12mm high density harness webbing

Stitch Length: 0.1~12.7mm

Control system: Closed-Loop Control

NeedleBar Stroke:56mm

Presser Foot Lift: 20mm

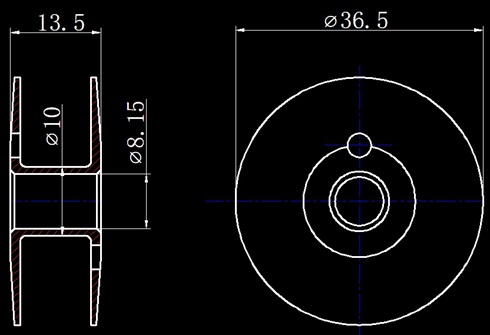

Bobbin size: Dia. 36.5mm, Height 13.5mm

Needle cooler: Cold air

Pattern Storage: Internal Memory USB

Pattern Input: Touch Screen

Max. Stitches: 8000 per pattern

Drive Motor: Limi-Servo (750 Watts)

Air pressure: 0.6 MPa

Power: 200-240 Volt 1 or 3 Phase

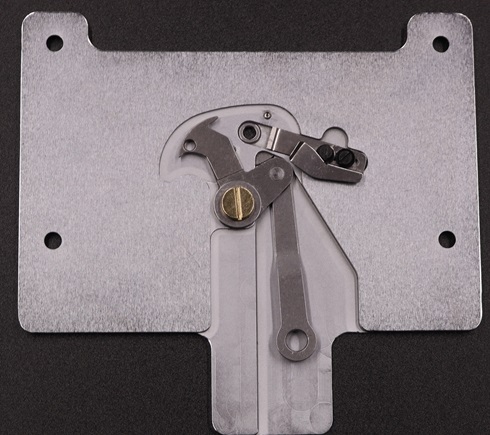

Thread trimmer system: Horizontal engagement with fixed knife and movable knife

Feeding System: Intermittent

Packing size: 1240x1110x 1330 mm, G.W: 280 KGS
